IRF2804STRL-7P
443
IRF2804STRL-7P
Tube
MOSFET N-CH 40V 160A D2PAK
$
Total Price: $ 0
In Stock: 0
Share
Please send RFQ , we will respond immediately.
Purchase and inquiry
- User guide
- Purchase & Inquiry
- Transport
IRF2804STRL-7Pinformation
- Specifications
Infineon Technologies. IRF2804STRL-7P technical specifications,attributes, parameters and parts with similarspecifications to Infineon Technologies. IRF2804STRL-7P.
-
TypeParameterSelect All
-
Series
HEXFET?
-
Package
Tube
-
Product Status
Obsolete
-
FET Type
N-Channel
-
Technology
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss)
40 V
-
Current - Continuous Drain (Id) @ 25°C
160A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On)
10V
-
Rds On (Max) @ Id, Vgs
1.6mOhm @ 160A, 10V
-
Vgs(th) (Max) @ Id
4V @ 250μA
-
Gate Charge (Qg) (Max) @ Vgs
260 nC @ 10 V
-
Vgs (Max)
±20V
-
Input Capacitance (Ciss) (Max) @ Vds
6930 pF @ 25 V
-
FET Feature
-
-
Power Dissipation (Max)
330W (Tc)
-
Operating Temperature
-55°C ~ 175°C (TJ)
-
Mounting Type
Surface Mount
-
Supplier Device Package

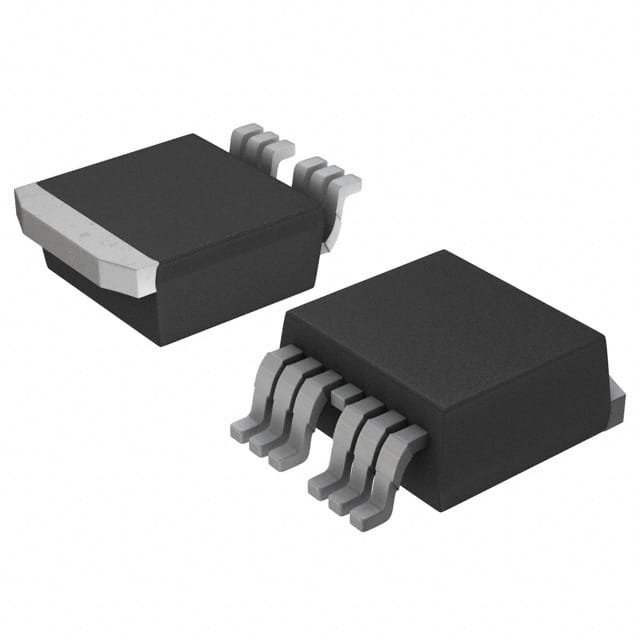

D2PAK (7-Lead)
-
Package / Case
TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Download datasheets and manufacturer documentation for Infineon Technologies. IRF2804STRL-7P.
- Datasheets :
